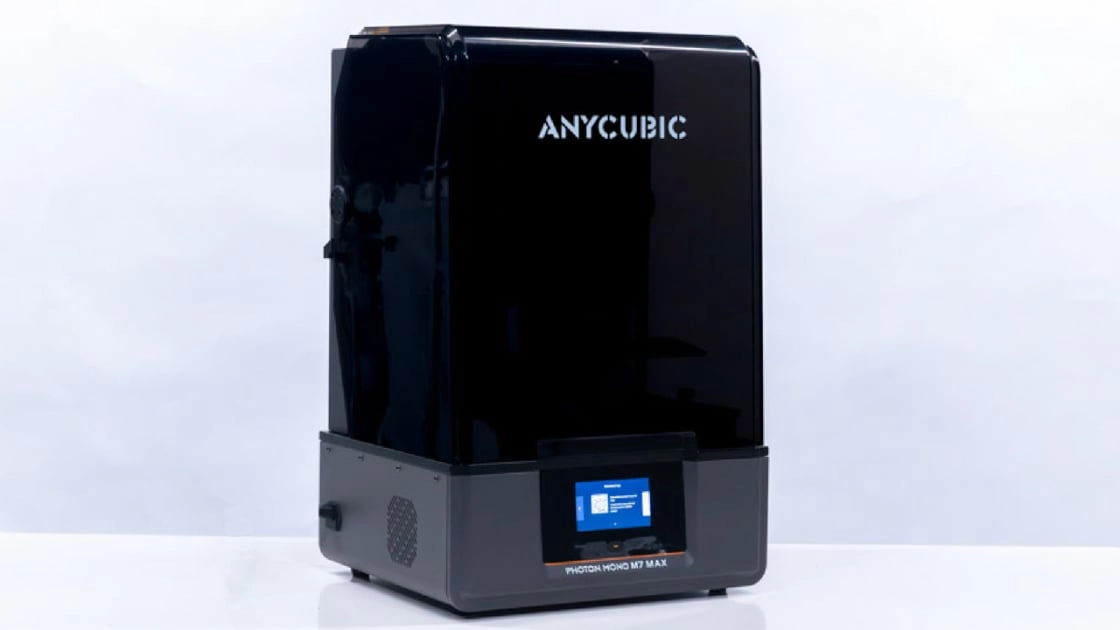

The Anycubic Photon Mono M7 Max has made waves in the 3D printing community, offering a compelling blend of quality and affordability. Priced under $1,000, it boasts features that appeal to both enthusiasts and light industrial users alike.
Key Features
The M7 Max stands out for several reasons:
- It utilizes a heated and mixed resin vat for better consistency.
- The printer has a large build volume, capable of accommodating substantial models.
- An automatic resin feed feature simplifies the printing process, reducing hands-on interaction.
- Built-in Wi-Fi connectivity enables app-based monitoring of the printing process.
However, it does have some drawbacks:
- Lacks an air filter, so users will need to manage fumes during operation.
- The USB port and power cord are inconveniently placed.
- Requires manual leveling, as it does not feature automatic leveling.
- Has a relatively low-resolution 13.6-inch LCD print screen compared to some competitors.
Specifications
- 3D Printing Technology: Stereolithography (SLA)
- Materials Supported: Resin
- Build Area: 11.7 x 6.4 x 11.8 inches
- Print Resolution: Up to 10 microns
- Dimensions: 25.7 x 16.7 x 14.3 inches
- Weight: 52.91 lbs
- Warranty: 1 year
Unboxing Experience
Upon receiving the printer, the unboxing process was straightforward, taking about 15 minutes from box to print-ready. The package included a variety of tools, including a plastic and metal scraper, a user manual, leveling paper, and a unique auto-fill cap assembly for easier resin transfer.
The printer features a responsive 4.3-inch color touchscreen that guides users through the setup process, including installing the Anycubic app for remote monitoring. Users can manually level the print bed, which allows for more control over the setup.
Design and Build Quality
The construction of the M7 Max is robust, made primarily of metal with a solid 10mm high-precision lead screw and hardened-steel linear guide rails. The printer feels industrial-grade, reflecting Anycubic’s focus on delivering a quality product at an accessible price point.
One of its innovative features is the Intelligent Release 2.0, which detects if a print has failed mid-process by monitoring the force needed to separate layers. If the printer senses that no resin is attached to the build plate, it alerts the user, allowing for proactive management of prints.
Print Quality
The M7 Max excels in producing high-quality prints with exceptional detail. During testing, various models—ranging from intricate miniatures to large, complex designs—were produced without issues. Models printed at both 0.05mm and 0.01mm resolutions exhibited remarkable clarity, with well-defined edges and surfaces.
The printer’s capabilities extend even further when using its ACF release film, designed to reduce peeling forces and improve print speed. It performs well even with challenging geometries, and printed test objects displayed impressive dimensional accuracy.
Conclusion
Overall, the Anycubic Photon Mono M7 Max is a significant contender in the 3D printing landscape, perfectly situated between hobbyist and professional use. While it still requires some manual calibration and lacks a few advanced features found in pricier models, it offers a superior experience for those seeking high-quality prints without breaking the bank.
